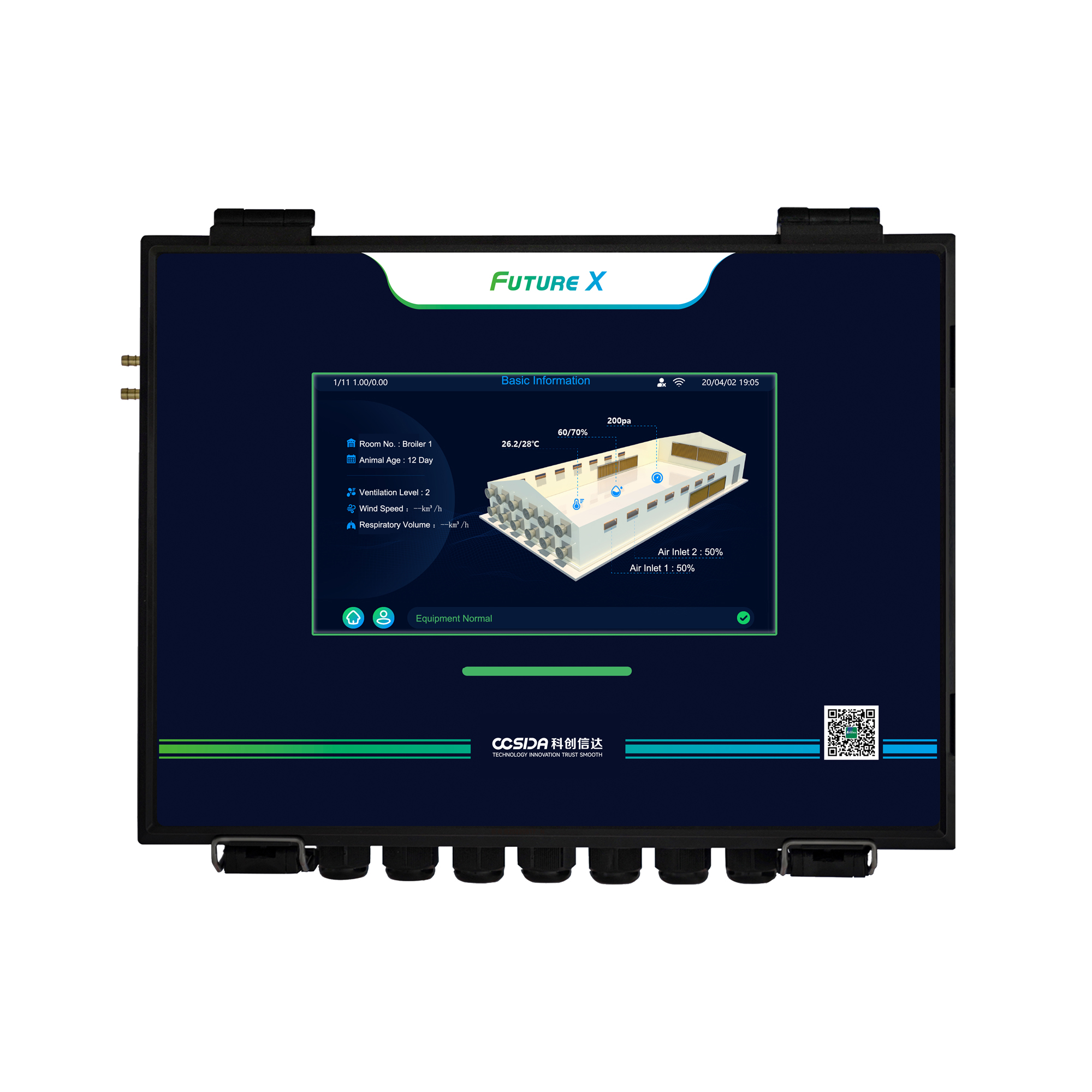

Intelligent Climate Controller Future X

Short Description:

Precisely regulate and maintain the temperature and humidity levels in the livestock house.

Control ventilation, heating, floor heating, humidity and cooling

Climate is continuous adapted to the animals’ age and needs based on the set curves

Controller monitors and controls feed and water supply to the animals

Registers the weight of animals through continuous weighting，systematic monitoring of the above

Provide a picture of the broiler productivity

Give an indication of problems in the livestock house.

Send email to us

Product Detail

Product Tags

Product Functions

40 channels of relay output

Breeding technology algorithm implantation

Precise control of data

One-click intelligent parameter setting

Fine control of somatosensory temperature

Voice intelligent interaction

Main Components

Input section

[10 channels] High-precision temperature sensor, 9 channels of indoor temperature and 1 channel of outdoor temperature can be configured;

[6 channels] 4-20mA signal sensor, which can be configured as temperature, humidity, CO2, NH3, H2S, static pressure, wind speed, etc.;

[2 channels] 0-5V analog quantity, the position feedback signal of the wind window can be configured;

[5 channels] Relay, feed and water consumption, external alarm signal, etc.;

[1 channel] 12V battery input interface; configured as outage alarm;

Output section

[8 channels] 0-10V analog quantity, can be configured as 2 channels of variable speed fans, 4 channels of air inlet, 1 channel of heating, and 1 channel of light adjustment;

[40- channels] Relay; can be configured as 30 channels of fixed speed fans (multiplexing), 2 channels of cooling pad water pump, 1 channels of spray , 3 channels of heater, 1 channels of circulating fan, 3 channels of timer, 1 channels of temperature control switch , 4 channels of air inlet, 1 channels of alarm;

Communication section

[3 channels] RS485 communication interface, configured as communication interface, product data gather interface, waterline sensor gather interface;
