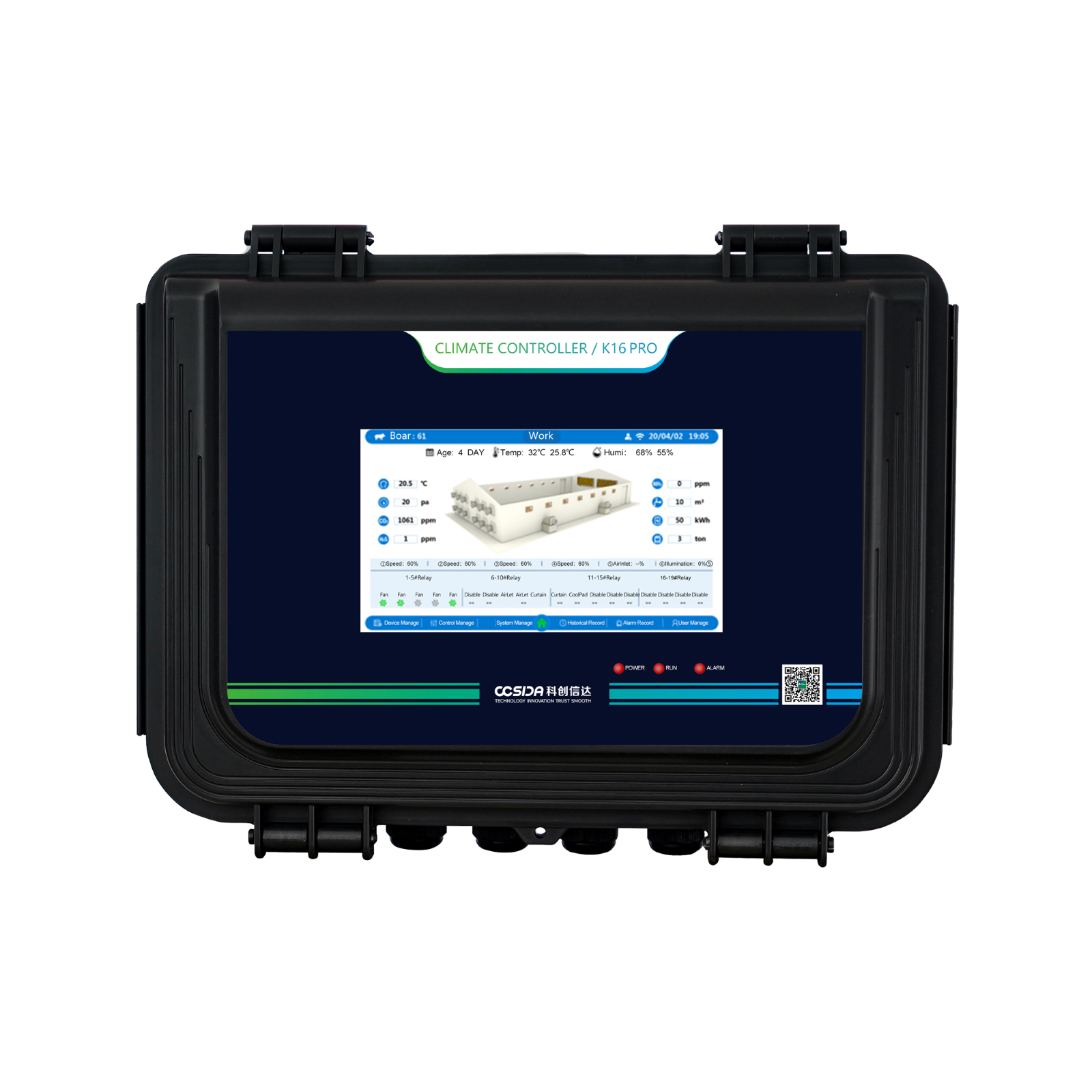

Intelligent Climate Controller K16 Pro

Input section

[7 channels] High-precision temperature sensor, 6 channels of indoor temperature and 1 channel of outdoor temperature can be configured;

[4 channels] 4-20mA signal sensor, configured as temperature, humidity, CO2, NH3,H2S,static pressure, wind speed, etc;

[3 channels] Relay, feed and water consumption, external alarm signal, etc.;

Output section

[3 channels] 0-10V analog quantity, can be configured as up to 3 channels of variable speed fans, 2 channels of air inlet (shared) and 1 channel of light adjustment;

[16 channels] Relay, can be configured as fixed speed fan, cooling pad water pump, spray, heater, circulating fan, timer, temperature control switch, wind window, curtain, alarm;

Communication section

[2 channels] RS485 communication interface, can be configured as communication sensors, electricity meters, water meters, Internet of Things and expansion;
