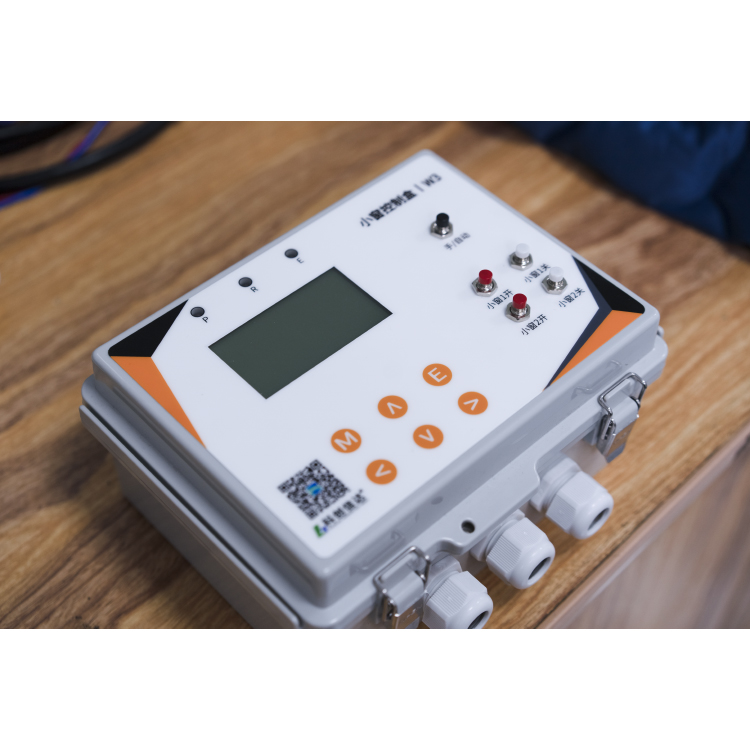

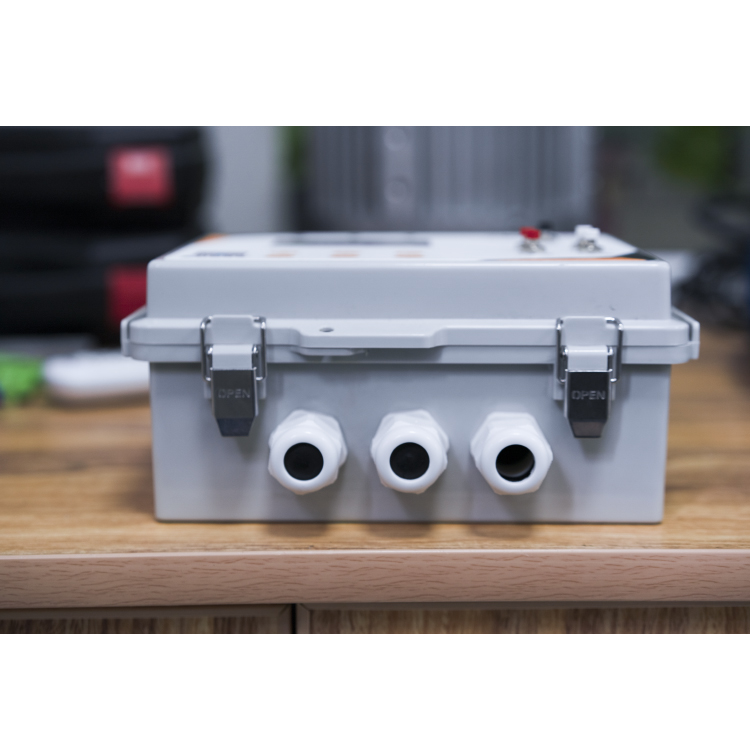

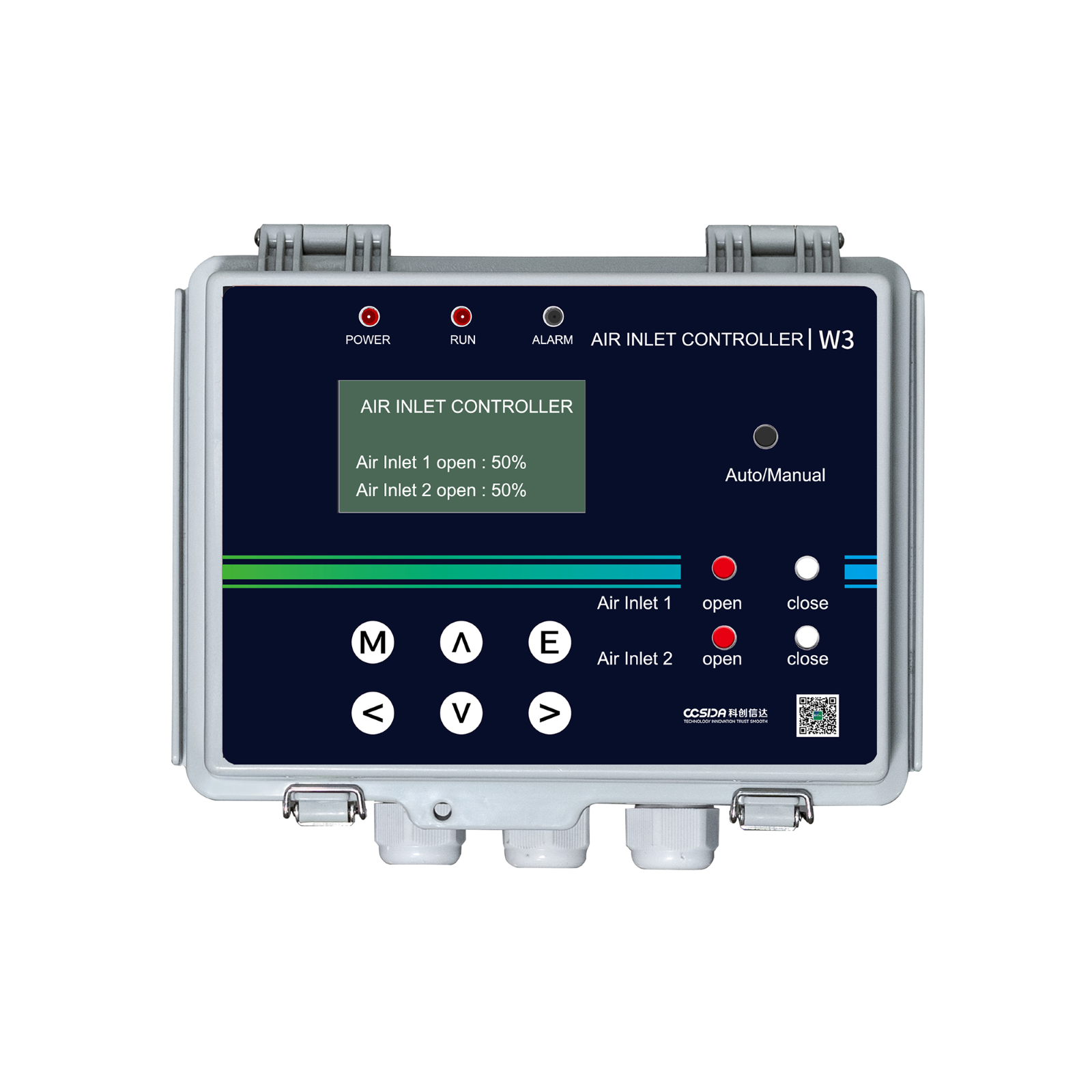

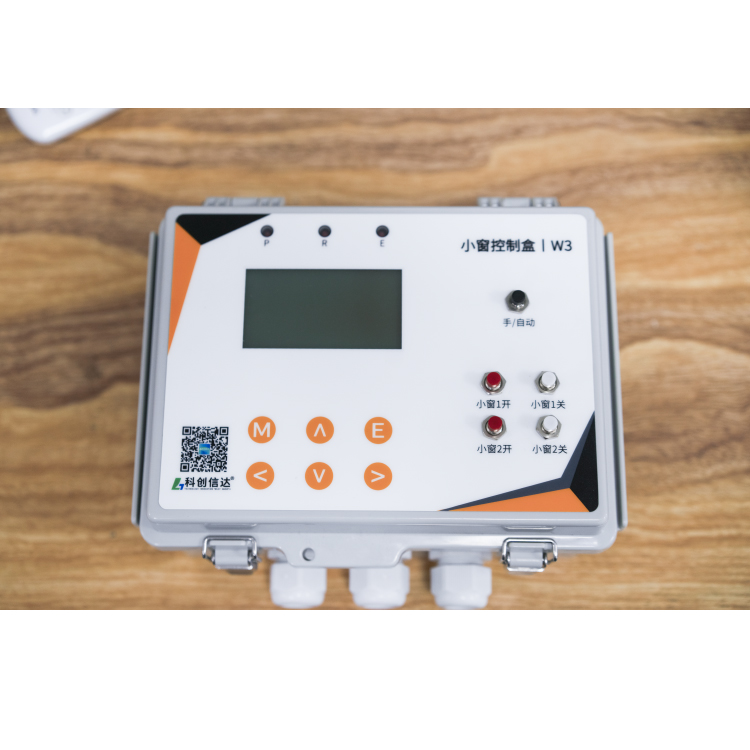

Air inlet control box W3
Air inlet control box W3
Features
LCD display, easy to operation
Electric push rod, accurate control
Control 2 pcs electric push rod
Manual and auto,1 click switchover
Electric push rod fault display
0-10V RS485 option
Main component
Input section
[4 channels] Switch interface;
[2 channels] Potentiometer interface;
[2 channels] Analog quality 0-10V interface;
Output section
[4 channels] Relay, electric push rod control interface;
[1 channel] Alarm output interface;
Communication section
[1 channels] RS485 communication interface
Main technical parameters
Input voltage ：AC85~305V,50/60HZ;
Rated power ：515W(system rate:15W;2 pcs electric push rod rate:500W);
Dimensions ：220*160*100mm;
Display accuracy ：1%;
