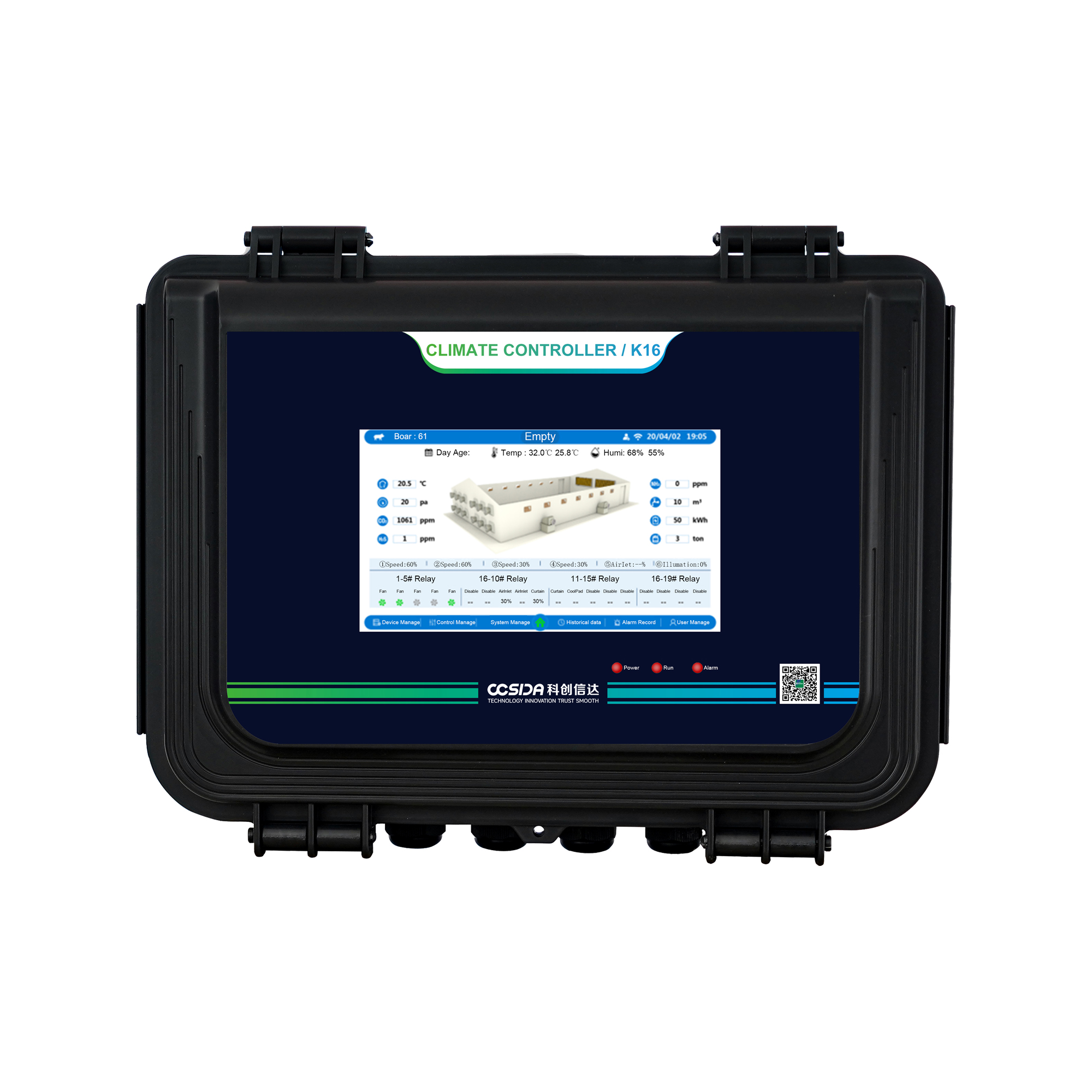

Intelligent Climate Controller K16

Input section

[7 channels] High-precision temperature sensor, configurable for outdoor temperature;

[4 channels] 4-20mA signal, configurable as temperature, humidity, CO2, NH3,static presure, wind speed sensor;

[3 channels] Dry contact input, 1 channels external alarm input, 2 channels reserved;

[1 channel] 12V battery input interface; configured as outage alarm;

Output section

[3 channels] 0-10V analog signal, can be configured as variable frequency fan, pressure regulating fan, small vent, etc.;

[15 channels] Relay, can be configured as constant speed fan, cooling pad water pump, heater, timer, air inlet, curtain, alarm, etc.;

[1 channel] Relay alarm signal;

Communication section

[1 channel] RS485 communication interface, can be configured as the Internet of Things;1 extend channel, electricity meter, water meter, weight of silo
