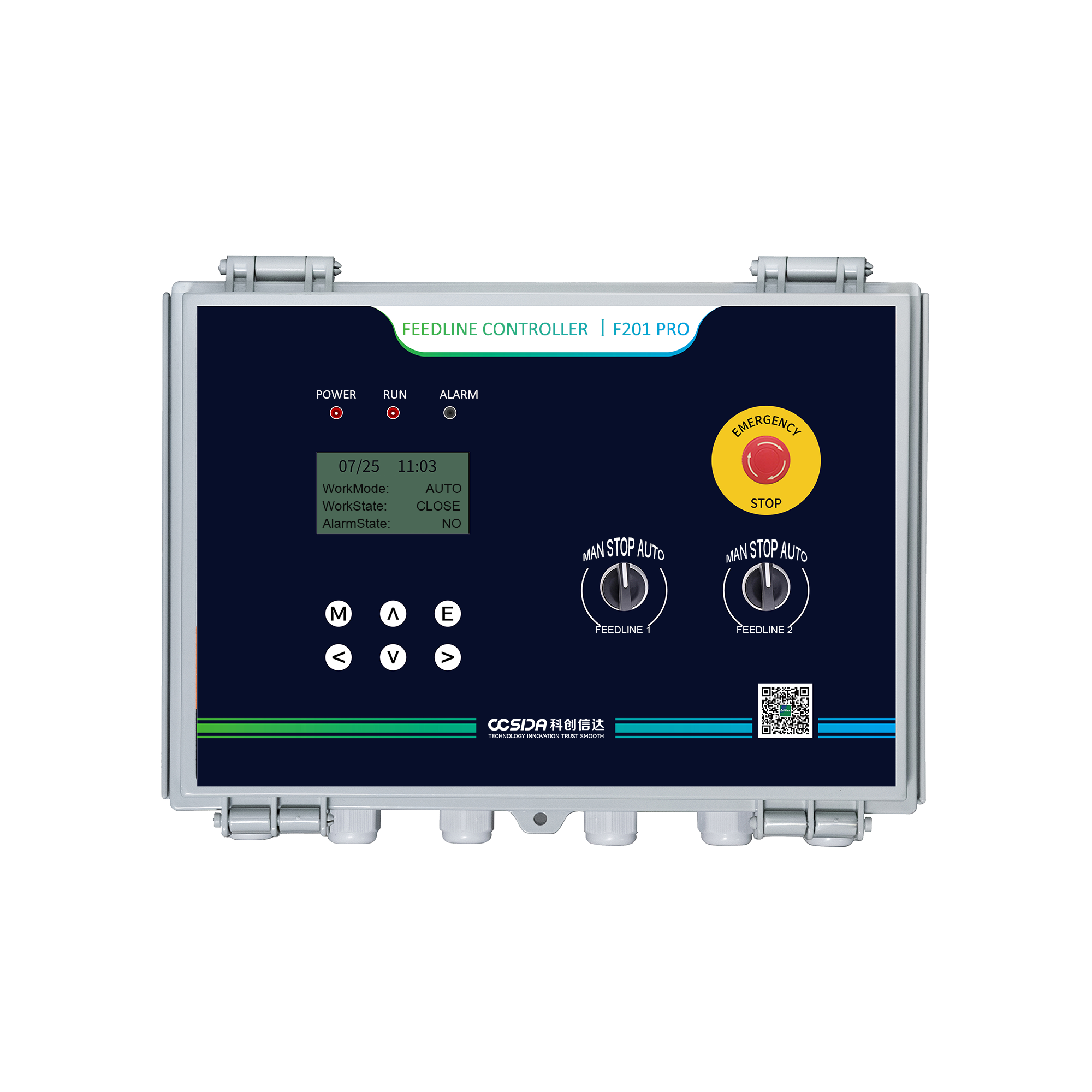

Automatic Feeding Controller -F201Pro

Main technical parameters:

Input voltage ：AC380V±10%，50/60HZ;

Rated power：F101Pro 1.5KW、F201Pro 3KW、F301Pro 4.5KW;

Dimensions：350*250*130mm;

Main function feature:

Manual operation，detection of material level;

Auto timer running，10 times per day at most;

Feeding operation, stop the feeding when detection of material level is full;

Connect with 1 channel / 2 channels/3 channels motor，respectively corresponding F101Pro、F201Pro、F301Pro;

Connect with 1/2/3 channels feeding position sensor and switch;

Setting time-lapse clean fodder, time-lapse transport; Connect with IoT platform; Overcurrent protection(Optional);

Phase sequence, lack of phase protection;
