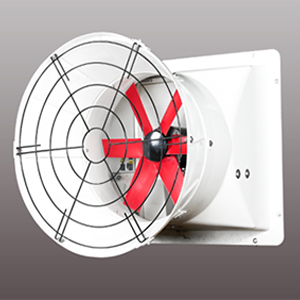

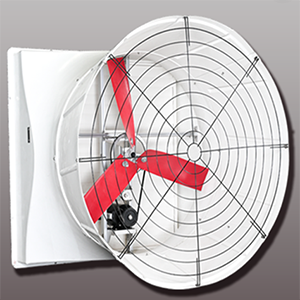

50 inch FRP Fan

Short Description:

The FDP fiberglass panel fan is constructed from a corrosion-resistant FRP resin and utilizes a Type FG impeller. The resin used for the FDP is resistant to a large variety of alkalis and other chemical agents. When a corrosion resistant fan is required to withstand chemicals that attack glass or polyester resin, special plastic and reinforcing material can be supplied.

Send email to us

Product Detail

Product Tags

Main technical parameters

1. Fan size: 1430*1430mm, Hole size: 1450*1450mm;

2. (molded) glass fiber reinforced plastic shell and air duct; fiber reinforced composite material fan blades, high-strength aluminum alloy bracket thickness 2mm; 304 stainless steel motor plate thickness 3mm; 304 stainless steel sheet metal parts;

3. Belt drive; Sanlux Belt A1473

4. American REGAL motor, 1.1kw, 380v, three-phase, 50hz;

5. Ventilation volume: 0pa: 46500m3/h; 25pa: 41500m3/h)
